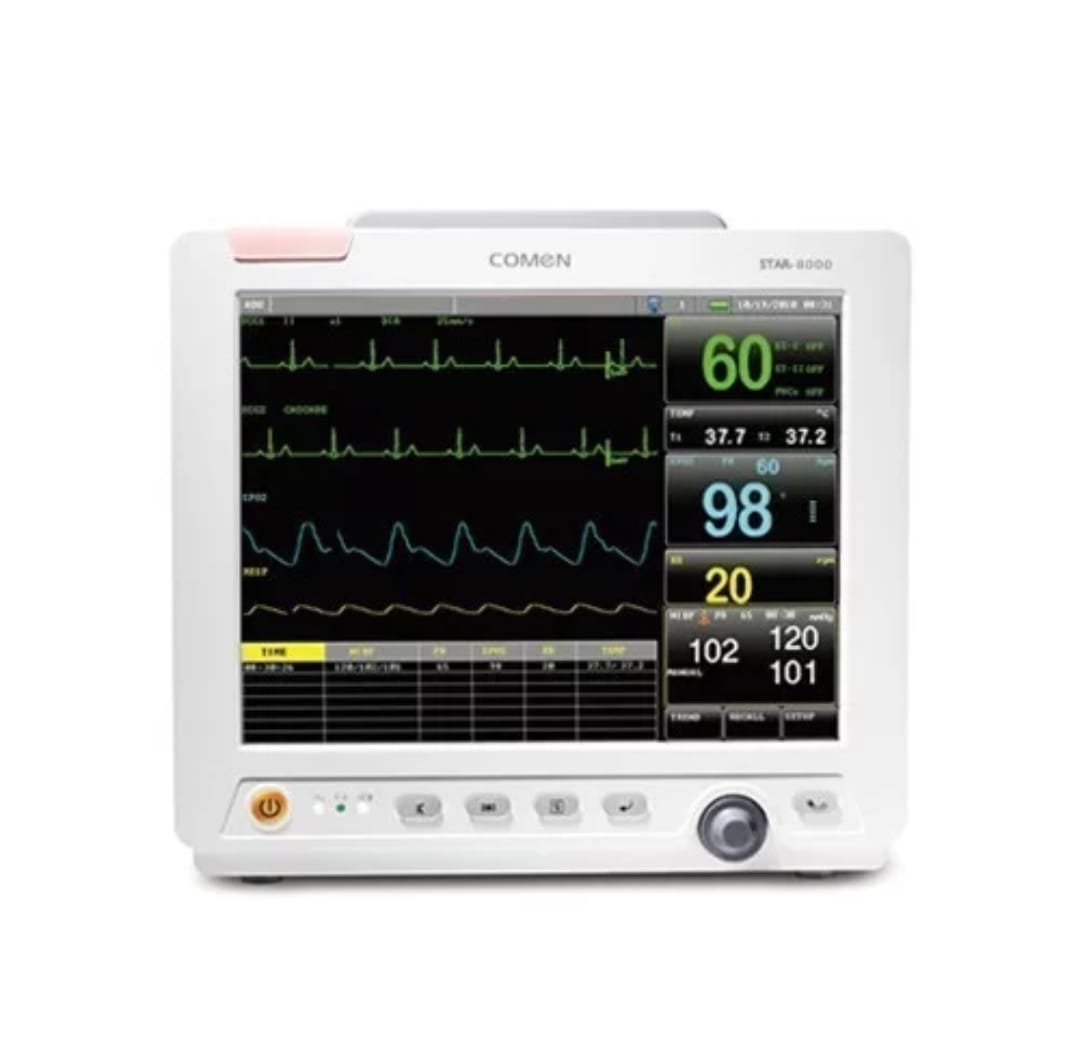

COMEN – STAR 8000 Patient Monitor Multi Parameter

Description

“DESCRIPTION
The COMEN STAR 8000 Patient Monitor is a multi-parameter monitor designed for use in various clinical settings, such as hospitals, clinics, and emergency medical services. It is a high-end device that can measure and display multiple physiological parameters, including ECG, heart rate, blood pressure, SpO2, temperature, and more.
It features a large, high-resolution color TFT display screen that provides clear and detailed vital signs readings. It also has advanced monitoring capabilities, including arrhythmia detection, ST analysis, and NIBP averaging, which can be used to identify potential health issues. The device can store up to 1000 sets of measurement data, allowing for easy tracking of vital sign trends over time.
It is a modular device, which means that it can be configured to meet the specific needs of a particular clinical setting. It also has a built-in thermal recorder and can be connected to a central monitoring system for remote monitoring and analysis of data.
The device is user-friendly and designed to be used by healthcare professionals such as nurses, paramedics, and doctors, as well as patients who self-monitor their vital signs at home. It is also lightweight and easy to transport, making it ideal for mobile settings.
Overall, the COMEN STAR 8000 Patient Monitor is a high-performance, versatile and reliable device that can monitor a wide range of vital signs, making it an essential tool for healthcare professionals and patients.
COMEN STAR 8000 is refined and has high-end quality. It is designed strictly following CE standards. It’s robust and stable with a solid anti-interference capability. Comen checks every process throughout R&D and production per international standards. They also conduct clinical tests in hospitals to ensure that each product is of the highest quality. Parameters: ECG/HR, SpO2, PR NIBP, and TEMP. Comen’s CardioTec TM ECG Monitoring Technology offers 13 different types of arrhythmia analysis and ST segment analysis and better precision of ECG measurement. Comen’s DioxTM Digital SpO2 Technology allows precise measurement even under poor perfusion and trembling finger conditions; AcuTec TM Blood Measuring Technology and the analysis of the hemodynamic characteristics of patients at high risk to ensure accurate BP measurement.

Features:
1-inch high HD resolution TFT color screen
The only NIBP-specific button, as well as the NIBP dust shield
Helpline Nurse Connection
Fully meeting the essential monitoring needs
Independent NIBP Button
Support for USB and SD card connections
Convenient Handle
Excellent NIBP dust Shield Design
Various mount solution
Standard Configuration:
ECG/HR
SpO2
NIBP
Respiration
Temperature
Pulse
Optional Configuration:
Nellcor SpO2
Thermal Recorder
Wire/Wireless Central Monitor Station
Unique Accessories for Neonatal and Pediatric Patients

Specifications:

ISO 13485 2003 approved, CE marking according to MDD93/42/EEC
Dimension 320mm×170mm×280mm
Weight 6kg
Power AC100-250V, 50/60Hz.
Temperature 0-40˚C
Humidity 15-85%
Patient Range Adult, Pediatric, and Neonate patients
Display 12.1inch colour TFT (diagonal)
Resolution: 800×600

Trace 5 waveforms Sweep Speed: 12.5mm/s, 25mm/s, 50mm/s
Indicator Power indicator light Battery indicator light Alarm indicator light
Inter face Parameter cable inter face AC Power input socket Network inter face
Battery lead-Acid /Rechargeable 5 hours for continuous working
Trend time 1~96 hours
Alarm User-adjustable High and Low limits alarm events recallable audible and visual alarm
Networking Connected to central monitoring system
Recorder Built-in, thermal array, 2 traces, paper width:50mm Record mode: manual, on alarm, time-defined
Print speed 12.5 mm/s, 25mm/s, 50mm/s
Lead selection 5-Lead and 3-lead selectable
5 leads RA; LA; RL; LL; V or R; L; N; F; C,
3 leads RA; LA; LL or R; L; F
ECG waveform 2 channels
Gain selection ×1/4, ×1/2, ×1, ×2, Auto
Sweep speed 12.5mm/s, 25mm/s, 50mm/s
Heart Rate Range 15 ~ 350bpm
Accuracy ±1% or ±2bpm whichever is greater
Resolution 1 bpm
Waveform Standard 5 ECG waveforms
Pace detection Yes
HR alarming time ≤12s
Input impedance > 5 M
Method Thoracic impedance
RR measurement range 0-100rpm
Resolution ±1 rpm
Accuracy ±1rpm
Measurement range 0-100%
Resolution ±1%
Accuracy ±1% (90-100%) 2% (70-89%)
Pulse Rate range 0~250 bpm
Pulse Rate Accuracy ±1bpm
Measurement method Automatic oscillometric
Measurement types Systolic, Diastolic, Mean
Work mode Manual / Automatic
Auto measurement time Adjustable
Measurement unit mmHg / KPa selectable
Range of systolic pressure Adult mode: 40~270 mmHg
Pediatric mode: 40~200 mmHg

Neonate mode: 25~135 mmHg

Range of diastolic pressure Adult mode: 30~200 mmHg
Pediatric mode:20~150 mmHg

Neonate mode: 10~110 mmHg

Range of mean pressure Adult mode: 30~220 mmHg
Pediatric mode 30~160 mmHg

Neonate mode: 20~170 mmHg

Accuracy ±5 mmHg
NIBP pressure range 0~300 mmHg
PR from NIBP Measurement 40-240 bpm
Over-pressure protection Double safety protection
Measurement range 20-45˚C
Resolution 0.1˚C
Accuracy 0.1˚C
Measurement unit ˚C/F selectable
Sample Gas Flowrate 50ml/mi”
